Export XY points as ArcInfo GENERATE text

A runnable Apache Hop tutorial for ArcInfo GENERATE.

All vector examples · Vector Raster plugin

Write the three site IDs and their coordinates to a small, human-readable GENERATE file.

Before you begin

Download and set up the example project. This walkthrough uses Apache Hop 2.19.0, distribution 0.2.1-SNAPSHOT.build.35761791293.1, with the local run configuration. Keep the supplied input unchanged and use a writable output directory.

Download generate.hpl · Complete project ZIP

The individual pipeline requires the data and project configuration from the complete ZIP.

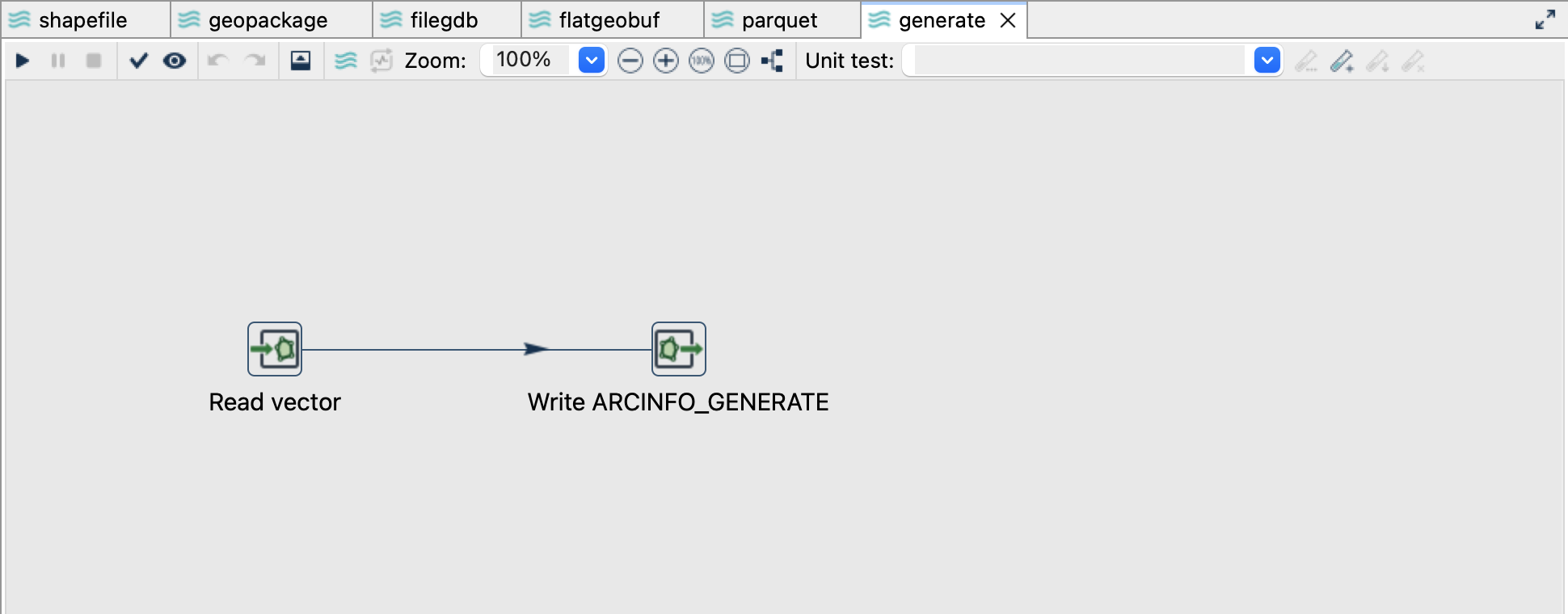

The ArcInfo GENERATE pipeline in Hop GUI.

The ArcInfo GENERATE pipeline in Hop GUI.

Read the source

  1. Open generate.hpl from the example project.
  2. Click Read vector and choose Edit. The file is ${PROJECT_HOME}/data/sites.gpkg, format AUTO, layer sites, and geometry output field geometry.
  3. Use the source schema/preview controls to inspect the fields. Expect site_id, name, height_m and a geometry field. The source contains three point features in EPSG:2056.
  4. Close the reader dialog with OK, then click the writer and choose Edit.

Vector Reader configured for the supplied GeoPackage layer.

Vector Reader configured for the supplied GeoPackage layer.

Configure the writer

Setting Value
Format ARCINFO_GENERATE
Output file ${PROJECT_HOME}/output/sites.gen
Geometry field geometry
Geometry type POINT
Dimension XY
ID field site_id
Decimal places 2
Comma separator Off
Skip empty Off
Overwrite existing file Off

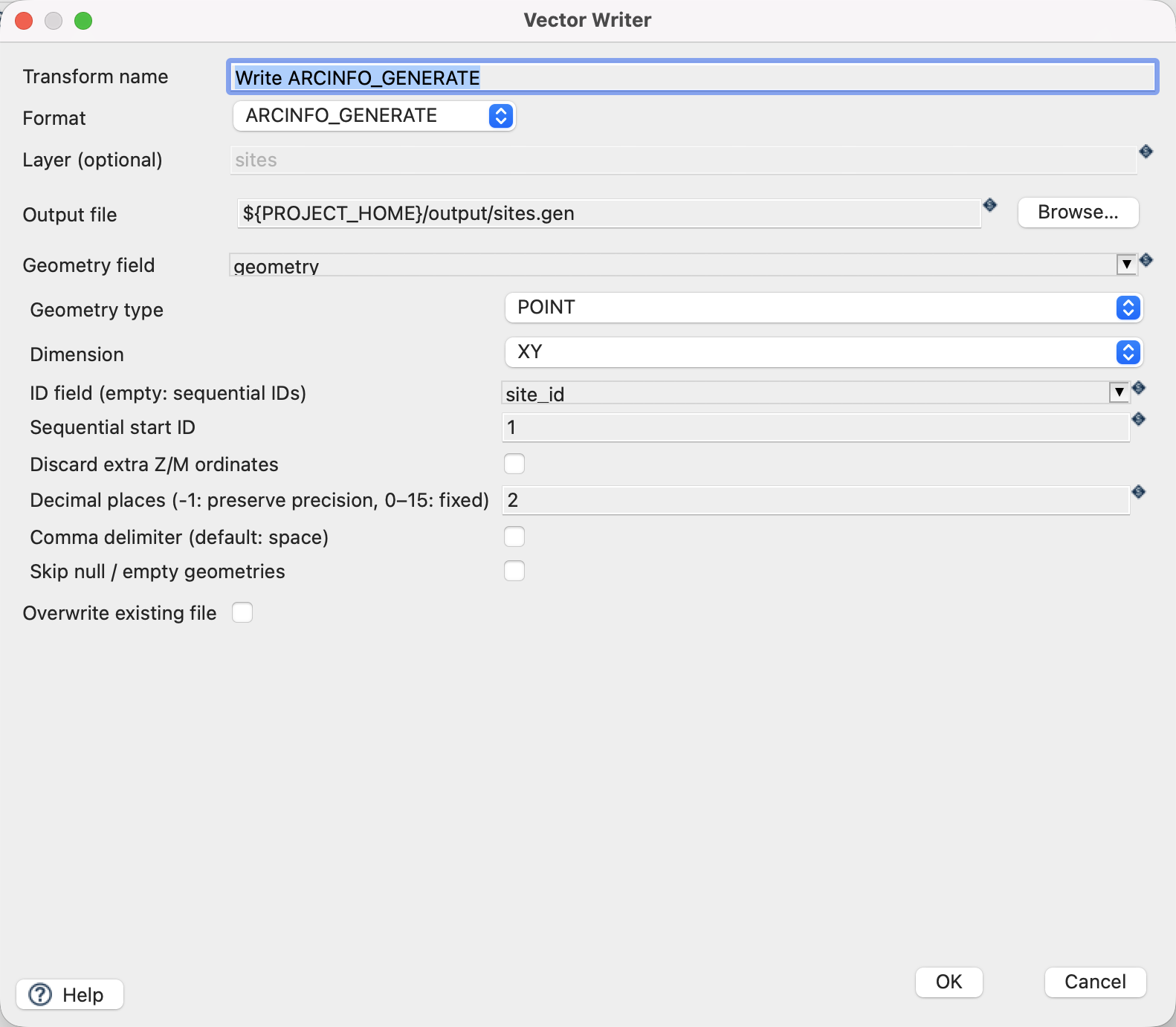

Vector Writer settings for ArcInfo GENERATE.

Vector Writer settings for ArcInfo GENERATE.

Run and check the result

Run generate.hpl, then open the output with a text editor. The complete expected result is:

1 2600000.00 1200000.00
2 2600100.00 1200050.00
3 2600200.00 1200100.00
END

Each line is ID X Y. The final END terminates the file. There is no attribute table: name and height_m are intentionally absent. Document EPSG:2056 alongside the exported file because GENERATE does not embed CRS metadata.

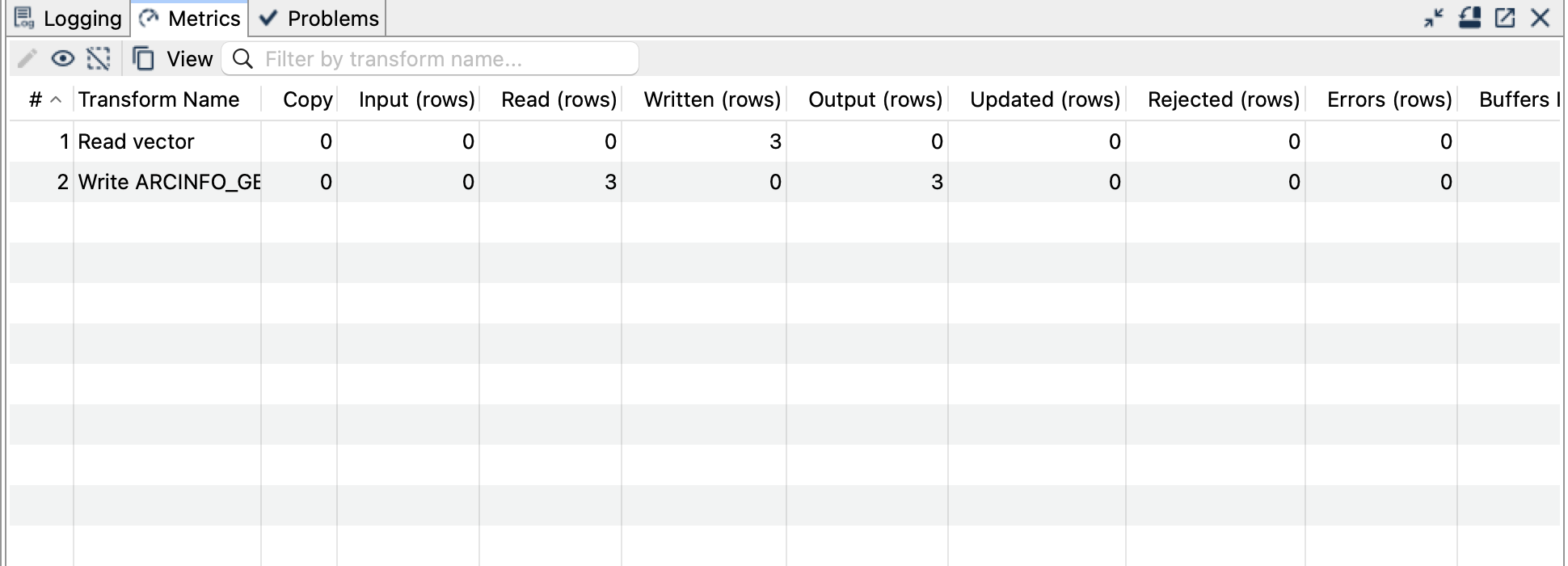

Completed ArcInfo GENERATE pipeline with processing metrics.

Completed ArcInfo GENERATE pipeline with processing metrics.

Things to watch out for

  • The ID field must be an integer. Without one, generated IDs begin at the configured start value; uniqueness is not checked automatically.
  • Point, line and polygon dialects differ. Ensure the receiving tool expects the selected dialect; not every .gen importer accepts every variant.
  • Only simple homogeneous geometries are supported. Multipart geometries, collections, curves and polygon holes need appropriate upstream processing.
  • XY and XYZ are different output modes. A numeric height attribute does not make an XY geometry an XYZ geometry.
  • Rounding can change geometry. This example rounds to two decimals without changing its integer coordinates; use appropriate precision for real data.
  • Arbitrary attributes and CRS are not embedded. Vector Reader cannot read GENERATE output.

The CRS controls assign a coordinate reference system; they do not reproject coordinates. All coordinates in this example already use EPSG:2056.
